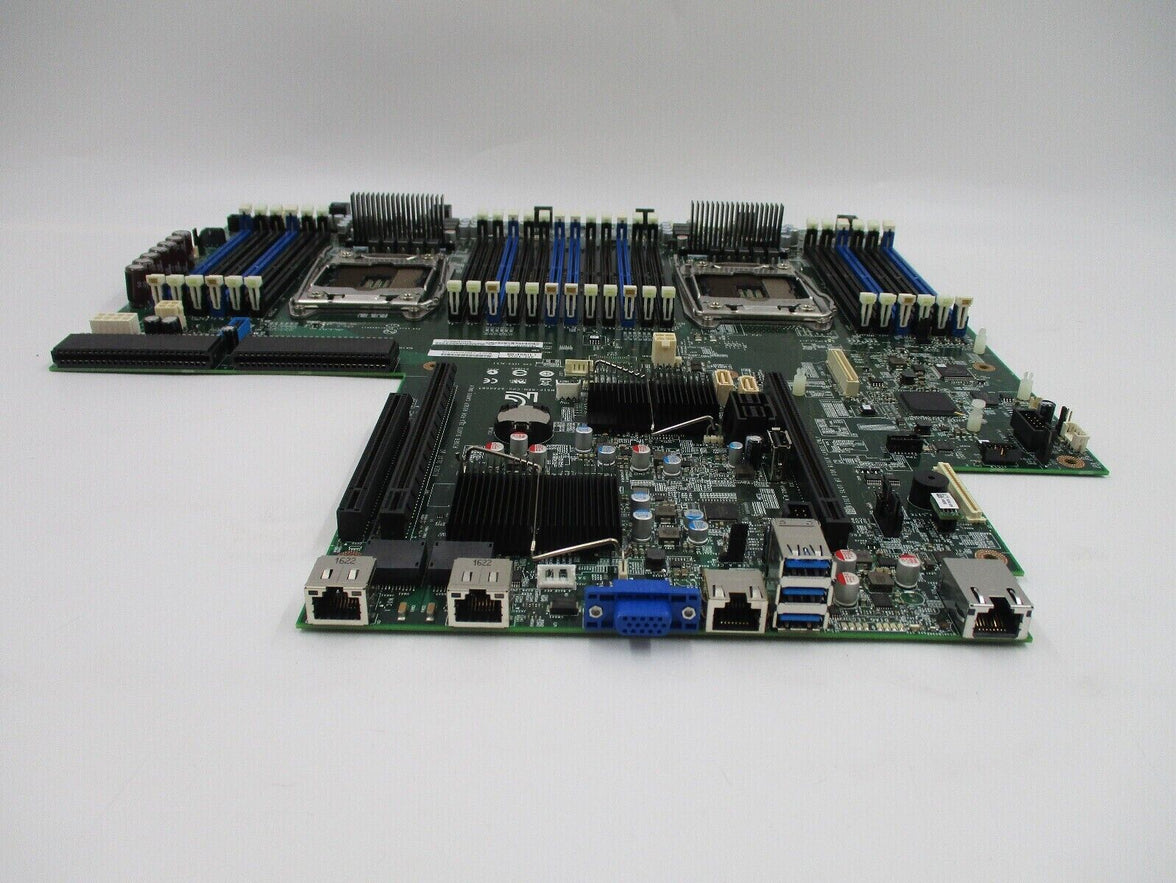

Intel Server Board S2600WTTR G92187-371

Intel Server Board S2600WTTR

Product Overview

The Intel Server Board S2600WTTR is a rack-optimized server board designed for data centers and enterprise environments. It offers maximum flexibility for expansion and supports the powerful Intel Xeon processor E5-2600 v4/v3 family. Here are the key specifications:

Part number G92187-371  spare part number G92187-366 / G92187-367 / G92187-373

• Processor Support: Dual sockets for Intel Xeon processors E5-2600 v4/v3 (up to 145W TDP)
• Memory: Supports DDR4 RDIMMs or LRDIMMs at 2400MT/s (maximum 1.5TB)
• Ethernet Ports: Two on-board 10GbE ports (Intel Ethernet Controller X-540)
• TPM Module: TPM 1.2 module installed
• Form Factor: Custom 16.7" x 17" (rack-friendly)

Key Features

1. Dual Processor Support: The S2600WTTR accommodates two Intel Xeon processors, providing exceptional compute power.
2. High Memory Capacity: With support for up to 24 DIMMs, this server board can handle memory-intensive workloads.
3. Fast Networking: The two 10GbE ports ensure high-speed data transfer.
4. TPM Security: The integrated TPM module enhances system security.
